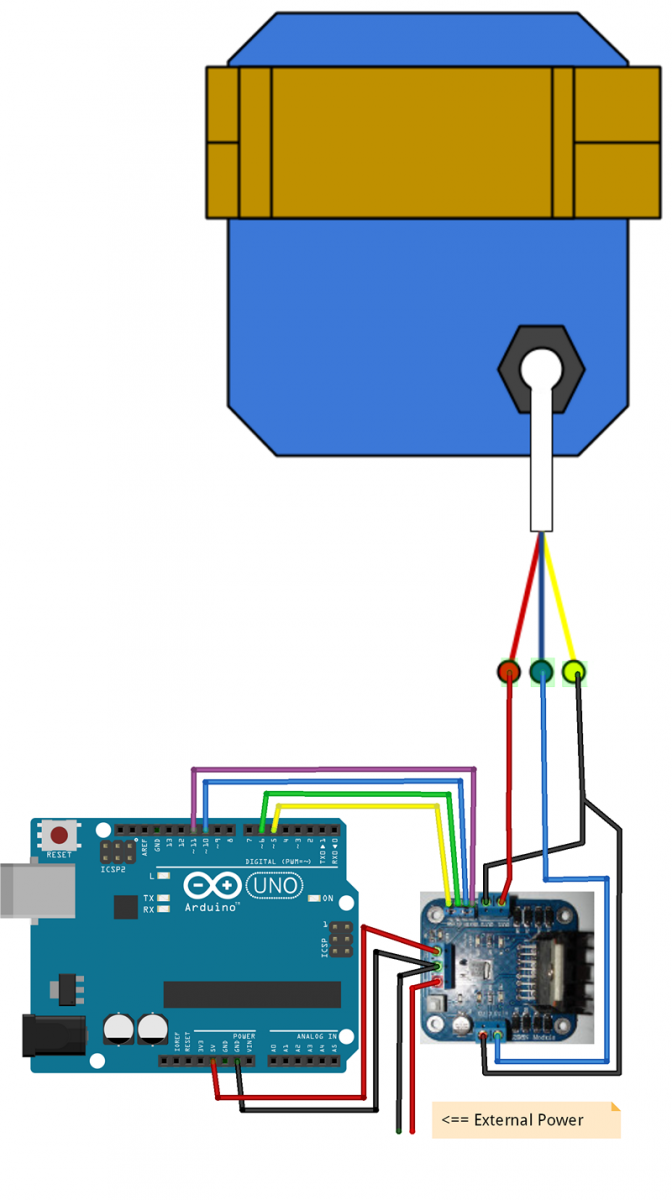

This Kit bilding on the Alarm Clock kit. It adds a L298 Motor Controller and a Powered tap Irrigation Valve solenoid valve.

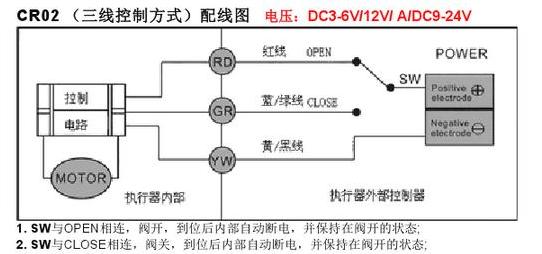

CR02 (three-wire control mode), the wiring diagram of voltage: DC3-6V/12V of / A/DC9-24V
1. SW and OPEN is connected to the valve opening, the internal automatic power-off place, and maintain the state of the valve opening;
2. SWCLOSE connected, the valve closed, internal automatic power-off place, and keep the valve open state;
|
three wire control - common ground
Yellow Wire: GND
Red Wire: Open Valve
Blue Wire: Close Valve |
|
Our mini 2-way motorised ball valve CWX-15Q is very high quality, with Elegant outline, Compactness and Very reliable performance, Full bore flow rates, Low voltage.
SKYPE: 1) 3 inche cube 2) Floating seal construction, no leakage, suitable for heavy scale(high fouling environment) 3) life- Min 100, 000 times, 4) Whole metal gear, reliable quality and super torque, 6) Accurate position, ?????????????????? 8) Low working current, less 100mA (Operation at 100 mA continuous is liable to be risky.)
Standard Features: 1) Rated Voltage: DC3-6V, 9-24V, AC9-24V, Power: Max 4 W 2) Rated Current: 45-100 Ma, Power: Max 4W 3) Output Torque: 1.5Nm 4) Valve size: DN8-25 (1/4, 1/2, 3/4, and 1 inch) 5) Rotation angle: 90 degrees 6) Material: 304 S/S, 316S/S, Brass, 7) Opening/Closing: Max 3 seconds 8) IP65 Enclosure 9) Working pressure: Max 1.0Mpa 150psi 10) Medium temperature: 0-90 Centigrade
