Electronic solenoid door lock

Description:

If you have a project to control door or cabinet access with an microcontroller ( or Arduino ), This electronic solenoid lock would do the job for you.



This works on the principle of electromagnetism, wherein a DC current creates a magnetic field which moves the slug. To drive the solenoid you would need a power source which can give 12V @ 500mA. The below circuitry would help you get it going without problems:


Applications:

  • Home Automation
  • Cabinet locking
  • Smart code locking doors
  • Electronic door control for attendance systems
  • Mobile control of door locks


Link to schematic to control the solenoid lock

Technical specs

  • 12VDC (you can use 9-12 DC volts, but lower voltage results in weaker/slower operation)
  • Draws 650mA at 12V, 500 mA at 9V when activated
  • Designed for 1-10 seconds long activation time
  • Max Dimensions: 27mm x 27mm x 17mm
  • Wire length: 222.25mm / 8.75"
  • Weight: 147.71g

Cabinet access control, door access control, arduino door control, lock solenoid, solenoid door lock, sliding door lock, electronic deadbolt, digital lock, gate lock, digital security lock, solenoid locks, door access control systems, single door access control, biometric access control, security access control

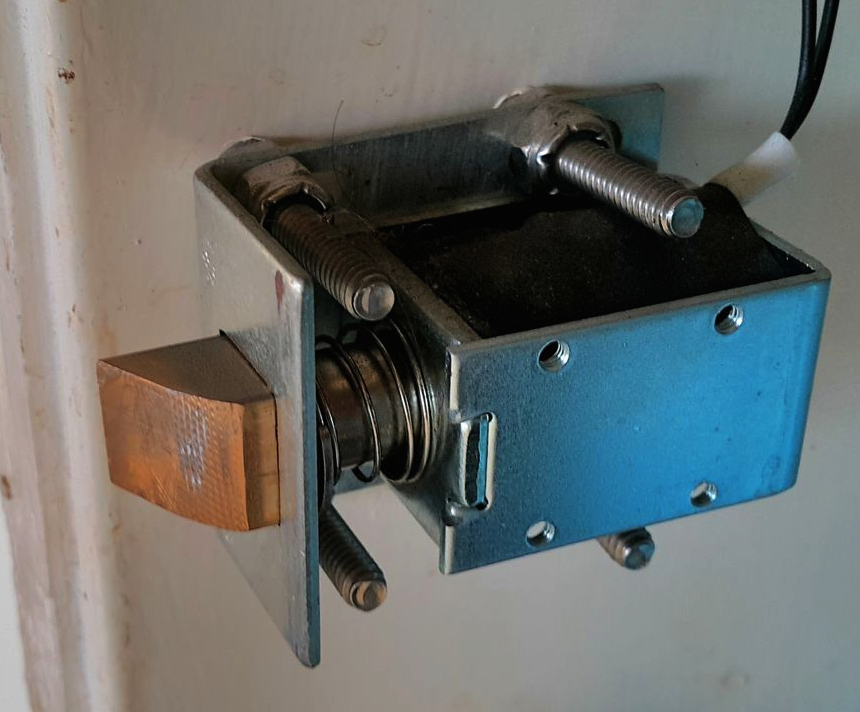

Image:

Catalog:

Price: $34.99
