Description:
When you out building your CNC or a stepper control board, you want a well designed board which will house your stepper drivers and allow
easy configuration of parameters ( Example configuring the steps of stepper controller with jumpers ). This CNC shield is a well designed board which
takes the trouble out of doing your own hardware layout and allows you focus on just coding the Arduino.
The shield allows external power supply upto 36V for powering powerful motors, Also has the pins for setting up end stops, hold & resume operation.

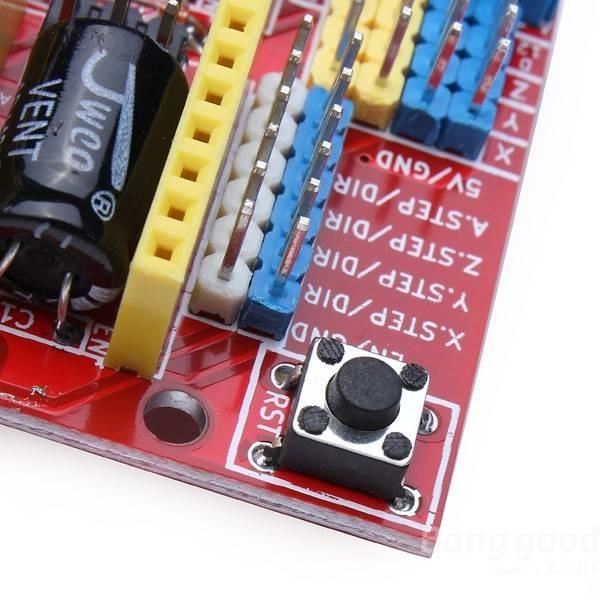

CNC Shield Board:
- GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
- PWM Spindle and direction pins
- 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
- 2 x End stops for each axis (6 in total)
- Coolant enable
- Uses removable A4988 or DRV8825 compatible stepper drivers
- Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping)
- Compact design.
- Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
- Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
Package includes:
- 1 x CNC Shield Board
Applications
- CNC Laser engraver machine
- PCB engraving machine
- CNC router / milling machine
- Robot Controls
Documents and Downloads
- What is a CNC router?
- GRBL An open source, embedded, high performance g-code-parser and CNC milling controller written in optimized C that runs on Arduino boards.
- A link to GRBL using Arduino CNC Shield V3
- An instructable on 3020 CNC + Arduino + GRBL + CNC Shield V3
- Windows GRBL Controller software
- Universal G-Code Sender software
Additional addons which can be purchased:
Image:
Catalog:
Price: $24.99
