Battery powered Datalogger

Image:

Description:

This device is a portable datalogger which records temperature on the fly with a user chosen interval between readings of 10 sec to 24 hours.

It has a recordable capacity of 16000 values, if you set the frequency to 2  hours it can record temperature data for 3.65 years.

This device is powered by a CR2450 internal battery ( which is replacable ) or via a USB connection.


Applications:

  •  Monitor temperature of stored or transported food
  •  Monitor temperature in a glass house for growing vegetables
  •  Monitor room temperatures inside house
  •  Monitor weather patterns by having the sensor log data over the course of years


Link to Users Manual


Model

 Elitech
Color  Black
Quantity  1
Screen Size  1.2"
Backlight  No
ºC Temperature range  -30 to +60°C
Unit  ºC
Other Data

 With the software, you could analyze data in  form of tables and graphs and export in  picture format. The data could be queried,  saved, printed and exported in  Word/Excel/TXT format; Temperature

 Measuring range: -30 °C~+60 °C

Ambient  Environmental temperature: -30 °C~+60 °C

 Accuracy: ±1 °C

 Resolution: 0.1 °C

 Record capacity: 16000 points (MAX)

 Record interval: 10s~24hour adjustable

 Sensor: Internal NTC thermal resistor

 Communication interface: USB interface

 Power supply: CR2450 battery (included)       or  USB interface

 Battery life: in normal temperature, if             the record interval sets as 15 minutes, it could be used above one year.

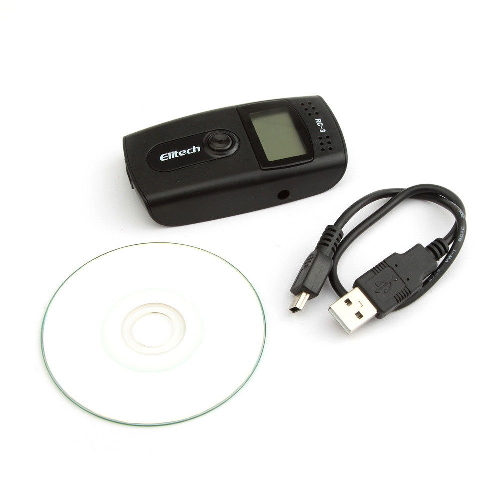

Packing List  1 x Data logger
 1 x USB Cable
 1 x CD

Temperature logger, usb logger, systems data, temperature recorder, data recording, data acquisition, portable data, channel data, temperature log, temperature monitoring, hobo, using logger,Temperature logger, usb logger, systems data, temperature recorder, data recording, data acquisition, portable data, channel data, temperature log, temperature monitoring, hobo, using logger, thermocouple, usb logger, data logging, data acquisition, humidity loggers, logger voltage, temperature, logger, temperature recorder, serial logger, hobo data, onset loggers, daq, dac, logger pressure, wireless temperature, logger racing, water data, channel data, meter data, data recorder, power data, logger fluke, thermocouple logger

Catalog:

Price: $69.00
