Description:
This is a single channel stepper motor controller that support a variety of micro stepping functions. It's recommended for building Reprap 3D printers and any other Stepper motor application.

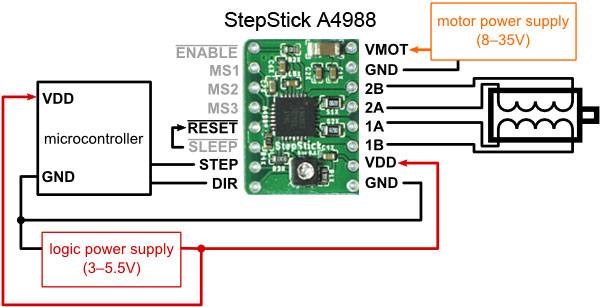

Typical wiring configuration
| Controller | Arduino | Comments |
| /ENABLE | GND | To enable |
| MS1 | GND | Select resolution |
| MS2 | GND | Select resolution |
| MS3 | GND | Select resolution |
| /RESET | VDD | no to reset |
| /SLEEP | VDD | not to sleep |
| STEP | I/O | Arduino generates pulses to STEP, each pulse gives one step turn |
| DIR | I/O | High or low to control direction |
| GND | GND | |
| VDD | 5V | 3 - 5.5v, typ. 5V |
| 1B | Steper motor phase A | |
| 1A | Steper motor phase A return | |
| 2A |
Steper motor phase B |
|
| 2B | Steper motor phase B return | |
| GND | GND | |
|
VMOT |
Steper motor voltage supply | 8 - 35 v, typ. 12v |
For documentation and more detail, please visit
http://reprap.org/wiki/StepStick
Input voltage: 8 - 35 V
Current rating: 2 A
tags: stepper motor, stepper motor controller, stepper motor driver
Image:
Catalog:
Price: $15.99
